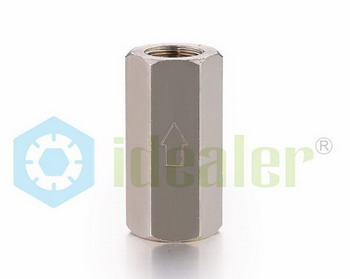

CVSF
IDEALER, NO BRAND, OEM BRAND
7412209000, 391740000, 7307290000
For Brass Fittings Ideal Bell uses Branded new materials, applied with Unique design and 100% test before delivery!
Pneumatic Straight Connector
◎ FEATURES

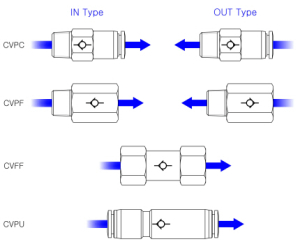

ㆍUni-directionality of airflow is maintained while the flow of air in the opposite direction is completely prevented.
ㆍConstant input and output air pressure is achieved due to the controlled directionality of airflow.
ㆍSuitable for the pneumatic applications under low operational pressure conditions.
◎ SPECIFICATIONS
| Applicable Fluid Type | Air, Water(No Drinking Water) | |
| Working Pressure Range | -14~150 PSI | -0.99~9.9Kgf/m?('-99~990Kpa) |
| Negative Pressure | -29.5 in Hg(-14PSI) | -750mmHg(-750Torr) |
| Working Temperature Range | 23~140℉ (Air) 32~104℉ (Water) | -5~60℃ (Air) 0~40℃ (Water) |
| Recommanded Tubings | PA11, PA12, PA6, PE, PU,FEP,PFA |
