IDEALER, NO BRAND, OEM BRAND
7412209000, 391740000, 7307290000

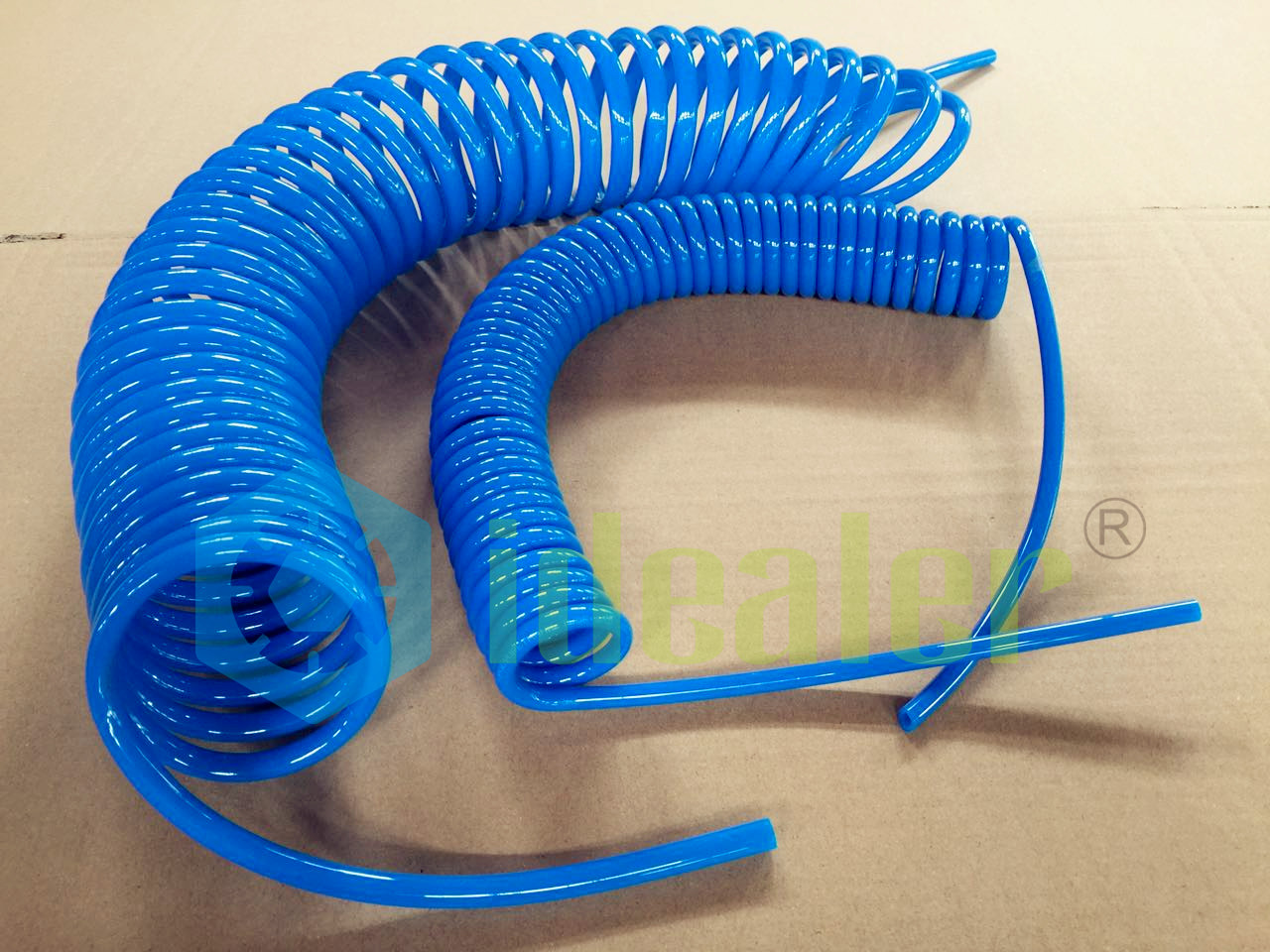

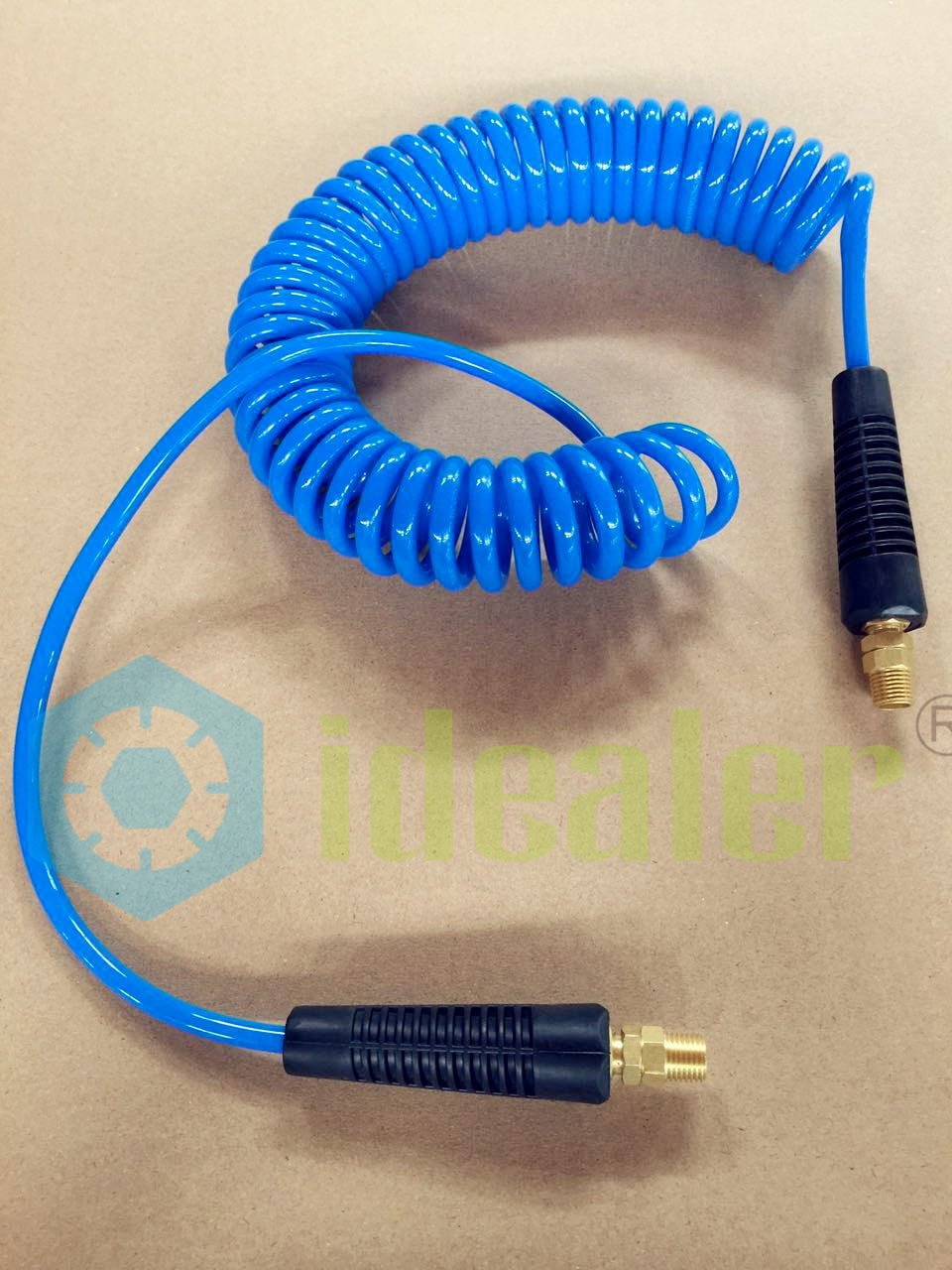

Ideal Bell Spiral Recoil Hose are lightweight and abrasion resistant. They maintain excellent memory while avoiding kinking when in use. Ideal for pneumatic connections in low ambient temperature conditions.
PU Tubes
◎ FEATURES
ㆍMultiple color, length and fitting options available
ㆍIndustry-standard sizing
ㆍReusable, field repairable compression fittings
ㆍSelf-retracting and self-storing coil tube characteristics with excellent memory.
ㆍHardness: Shore A95 or A98
◎ Our Advantages:
Material: The formula of tube raw material is developed by USA and Japan Labs. Production line is from world top brand.
Production Control: We applied an antomatic diameter control system with auto-feedback function. The systerm controls diameter tolerance within +/- 0.1mm, also eliminating all non-conforming products.
Testing: strict testing on diameter tolerance, oil pressure resistance, connect&disconnect lifetime, air pressure resistance…
◎ SPECIFICATIONS
| Applicable Fluid Type | Air, Water(No Drinking Water/Hot water) | |
| Working Pressure Range | -14~150 PSI | -0.99~10 bar |
| Negative Pressure | -29.5 in Hg(-14PSI) | -750mmHg(-750Torr) |
| Working Temperature Range | 23~140℉ (Air) 32~104℉ (Water) | -5~60℃ (Air) 0~40℃ (Water) |
| Connect With | Push-to-connect fittings, barb-type and compression fittings |
