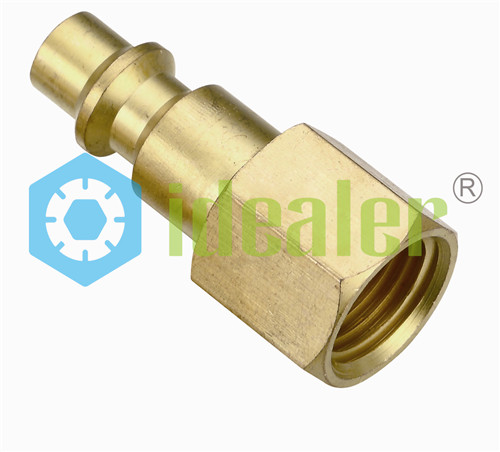

AIPF
IDEALER, NO BRAND, OEM BRAND
7412209000, 391740000, 7307290000
| Item Code | Description |
|---|---|
| AIPF-20 | 1/4"Female |
| AIPF-30 | 3/8"Female |
| AIPF-40 | 1/2"Female |
Pneumatic Fittings
Pneumatic Accessories
◎ FEATURES
ㆍSafety Coupling with self-venting mechanism
ㆍNo whiplash effect due to the self-venting which takes place during disconnection
ㆍUltra HighFlow valve for optimum flow and low pressure drop – Energy Saver
ㆍ Compact & robust design due to the hardened valve body
ㆍLow connection forces
◎ Applications:
– Pneumatic Tools
– Pneumatic Airline Systems
– Assembly Lines
| Material | Brass or steel based on request. NBR seals | |
|---|---|---|
| Working Pressure Range | 0-10Bar / 0-150PSI | |
| Working Temperature Range | -20?C--107?C (-4F--225F) | |
| Air Flow | 35 SCFM at 100 PSIG inlet with 10 PSIG pressure drop | |
| Application | Pneumatic Tools, Pneumatic Airline systems, Assembly Lines… |
| Item Code | Description |
|---|---|
| AIPF-20 | 1/4"Female |
| AIPF-30 | 3/8"Female |
| AIPF-40 | 1/2"Female |
