◎ FEATURES

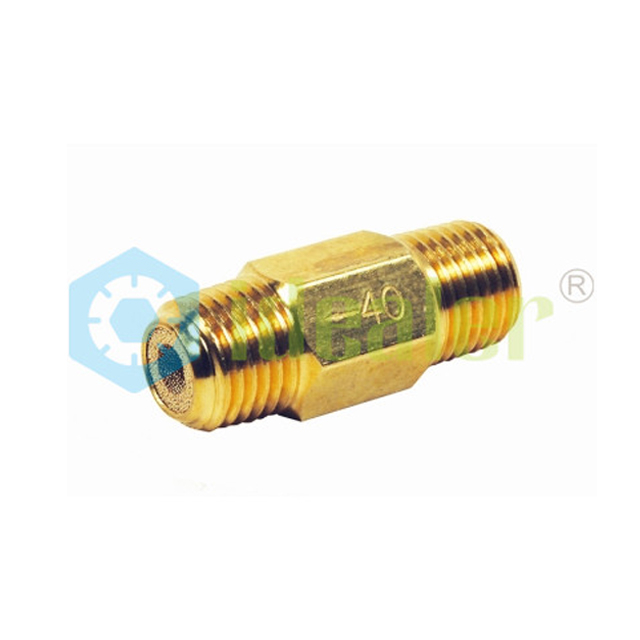

Nipple Muffler: This inexpensive disposable in-line nipple muffler is ideal for the filtration of water, oil and air. It is compact and lightweight and can be installed at the point of use. Unique unit construction features a brass fitting that contains a conically shaped, porous sintered bronze filter element.
The Shape of the filter element is conical, rather than disc, to provide a larger filtering flow and a true, uninterrupted axial flow.
◎ SPECIFICATIONS
| Body Material | Brass | |
| Element Material | Sintered Bronze | |
| Working Pressure Range | 300 PSI (20 Bar) | |
| Working Temperature Range | 35°F~300°F (1.6°C ~ 149°C ) |
◎ FEATURES
Nipple Muffler: This inexpensive disposable in-line nipple muffler is ideal for the filtration of water, oil and air. It is compact and lightweight and can be installed at the point of use. Unique unit construction features a brass fitting that contains a conically shaped, porous sintered bronze filter element.
The Shape of the filter element is conical, rather than disc, to provide a larger filtering flow and a true, uninterrupted axial flow.
◎ SPECIFICATIONS
| Body Material | Brass | |
| Element Material | Sintered Bronze | |
| Working Pressure Range | 300 PSI (20 Bar) | |
| Working Temperature Range | 35°F~300°F (1.6°C ~ 149°C ) |
