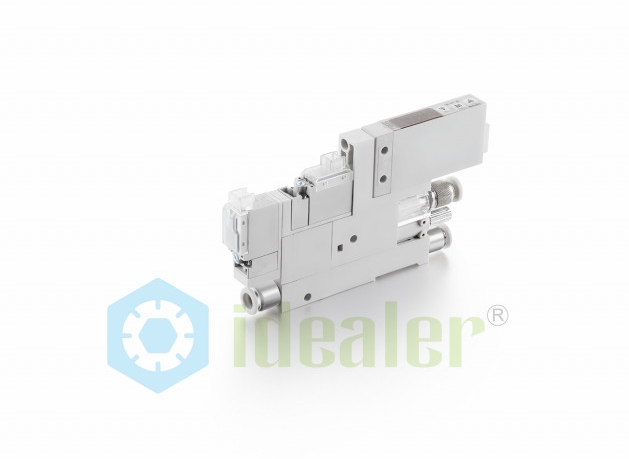

IVX-DW
IDEALER, NO BRAND, OEM BRAND
8414100090
A vacuum generator is an innovative, high-efficiency, clean, cost-effective, and space-saving vacuum component that utilizes a positive pressure source to create negative pressure.
Utilizing a Vacuum Generator simplifies the process of achieving negative pressures in applications with compressed air or in pneumatic systems that necessitate both positive and negative pressures.
IVX Vacuum Generator: High-efficiency, Light weight, Compact size, High Negative Pressure and Fast response!
*Input only 0.35Mpa positive pressure can get -93kpa negative pressure;
*Weight: 72g, If with pressure switcher, weight is 92.5g;
*Dimensions: 104*55*10.5mm, with Pressure Switcher: 117*62.5*10.5mm ;
*A well-thought-out configuration design enhances air circulation speed and facilitates quick response, simplifying the repair or replacement of parts.
*Equipped with two solenoid valves—one for controlling vacuum generation and the other for controlling vacuum release—the system can be utilized in a wider range of applications.
◎ SPECIFICATIONS
| Fluid Media | Compressed Air(Not Liquid) |
| Lubrication Accuracy | 10μm |
| Working Pressure | 0.3～0.5 Mpa |
| Working Temperature | 0.3～60°C |
| Working Vacuum | 0～-100 kpa |
| Voltage | DC 24V |
| Applied Tubes | PU,PA |

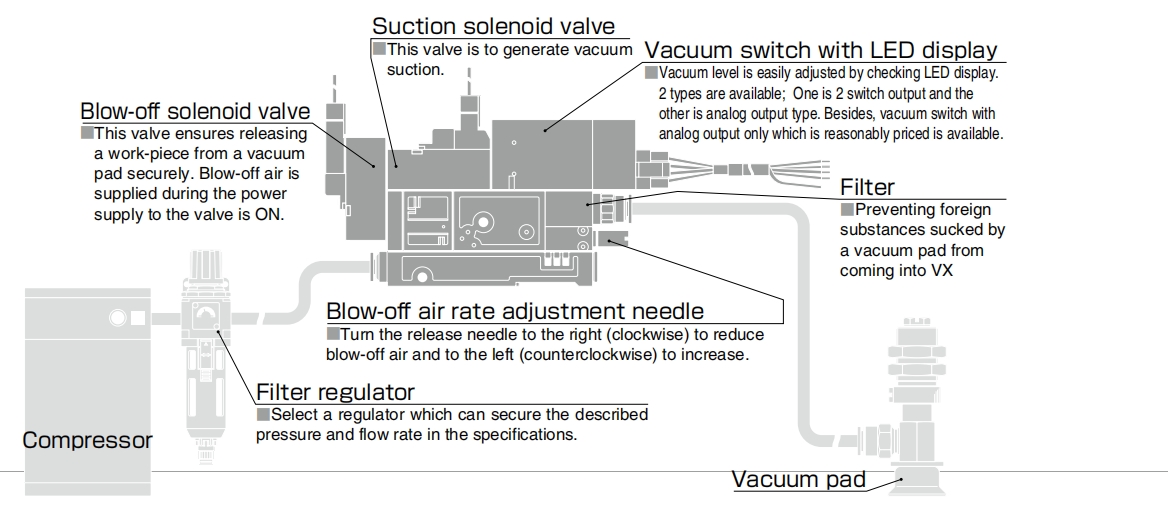

◎ PIPING EXAMPLES
