Pneumatic Check Valves Male Straight with ISO REACH

Share to:

Pneumatic Check Valves Male Straight with ISO REACH

Name: Pneumatic Check Valves Male Straight with ISO REACH
Brand: IDEALER, NO BRAND, OEM BRAND
Rating: 5.0 (25 reviews)

Availability:



Inquire

Model:
CVPC
Brand:
IDEALER, NO BRAND, OEM BRAND
Code:
7412209000, 391740000, 7307290000

Item Code List

Item Code	Tube Size(MM)	Thread(R/G/NPT)
CVPC4-M5	6	1/8
CVPC4-M6	6	1/4
CVPC4-01	6	3/8
CVPC6-01	6	1/8
CVPC6-02	6	1/4
CVPC8-01	8	1/8
CVPC8-02	8	1/4
CVPC10-03	10	3/8
CVPC10-04	10	1/2
CVPC12-03	12	3/8
CVPC12-04	12	1/2

Item Code	Tube Size(INCH)	Thread(R/G/NPT)
CVPC5/32-01	5/32	3/8
CVPC1/4-01	1/4	1/8
CVPC1/4-02	1/4	1/4
CVPC5/16-01	5/16	1/8
CVPC5/16-02	5/16	1/4
CVPC3/8-03	3/8	3/8
CVPC3/8-04	3/8	1/2
CVPC1/2-03	1/2	3/8
CVPC1/2-04	1/2	1/2

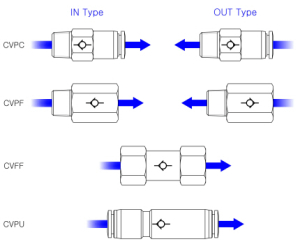

Check valve CVPC

one touch pneumatic fittings

◎ FEATURES
ㆍUni-directionality of airflow is maintained while the flow of air in the opposite direction is completely prevented.
ㆍConstant input and output air pressure is achieved due to the controlled directionality of airflow.
ㆍSuitable for the pneumatic applications under low operational pressure conditions.

◎ SPECIFICATIONS


Applicable Fluid Type	Air, Water(No Drinking Water)
Working Pressure Range	-14~150 PSI	-0.99~9.9Kgf/m?('-99~990Kpa)
Negative Pressure	-29.5 in Hg(-14PSI)	-750mmHg(-750Torr)
Working Temperature Range	23~140℉ (Air) 32~104℉ (Water)	-5~60℃ (Air) 0~40℃ (Water)
Recommanded Tubings	PA11, PA12, PA6, PE, PU,FEP,PFA
